Product Description:

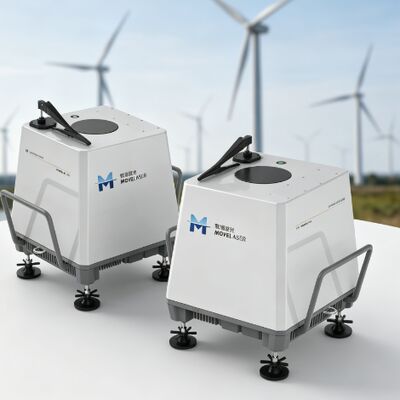

The Molas B300 utilizes the Doppler frequency shift principle combined with DBS scanning vector synthesis technology. This advanced approach allows it to accurately measure wind speed and direction at various heights, specifically from 30 meters up to 350 meters above the lidar device.
Within the Molas B300 series, there are four essential core components that work seamlessly together. These include a fiber laser lidar transmitter, a laser transceiver system, a high-speed data acquisition system, and state-of-the-art data processing software. Each of these modules is designed to ensure high compatibility and efficient collaboration across the entire system.
By integrating these key modules, the Molas B300 guarantees precise coordination and robust security of data information throughout its operations. As a result, this system achieves performance metrics that are on par with internationally recognized advanced standards.
Features:
The Molas B300 utilizes advanced non-contact measurement technology, delivering convenient and rapid operation combined with top-tier industry performance. It offers precise wind speed measurements with an accuracy of 0.1 m/s and wind direction accuracy up to 1°, ensuring dependable data for comprehensive wind resource assessments.
Featuring a broad measurement range from 20 to 350 meters and supporting 12 or 24 customizable measurement layers, the Molas B300 is versatile enough to meet diverse wind measurement requirements. Its compact and lightweight design eliminates the need for land acquisition or civil engineering, allowing for flexible deployments even in challenging terrains, which ultimately reduces both labor and costs.
Engineered for all-weather functionality, the Molas B300 maintains reliable performance under harsh outdoor conditions. It offers easy and fast maintenance without any safety hazards during operation. Additionally, secure data transmission safeguards against economic and regulatory risks related to data breaches.
Supporting wireless configuration and data transfer, the Molas B300 is user-friendly and allows for swift installation. This capability greatly shortens project timelines and lowers expenses. The Molas B300 is purpose-built for wind measurement, enhancing efficiency throughout project execution.
Technical Parameters:
|
Wind Speed Range
|
0~75 M/s
|
|
Protection Class
|
IP68
|
|
Distance
|
Ordinary Type 30~350m
|
|
Measurement Layer
|
12 Or 24
|
|
Sampling Rate
|
1 Hz
|
|
Humidity Range
|
0% To 100%
|
|
Powered By
|
24V ±5% DC, 100~230V AC
|
|
Temperature Range
|
-40°C ~ +60°C
|
|
Power
|
≤60W
|
|
Wind Speed Accuracy
|
0.1 M/s
|
Applications:
The MOLAS B300, a cutting-edge Laser Wind Speed Measurement product from the renowned brand MOLAS, is designed to deliver precise and reliable wind data in a diverse range of application occasions and scenarios. Originating from China, this advanced device is engineered to meet the demands of modern wind measurement technologies, featuring a Lidar-based measurement system that ensures high accuracy and efficiency.
One of the primary application scenarios for the MOLAS B300 is in meteorological research and weather forecasting. Utilizing its ground-based wind lidar technology, the device can continuously monitor wind speed and direction with a sampling rate of 1 Hz, covering a wind direction range of 0~360° and a wind speed range of 0~75 M/s. This capability makes it an invaluable tool for meteorologists who require real-time, precise wind data to improve forecasting models and understand atmospheric dynamics.
The MOLAS B300 is also extensively used in the renewable energy sector, particularly in wind farm site assessment and turbine performance monitoring. The ground-based wind lidar system provides detailed wind profiles at various heights, enabling engineers to optimize turbine placement and operation for maximum energy output. Its robust IP68 protection class ensures reliable operation even in harsh outdoor environments, while the fast delivery time and convenient flight case packaging facilitate quick deployment in remote locations.
In addition, the MOLAS B300 plays a crucial role in aviation safety and airport operations by providing accurate wind measurements that are vital for takeoff and landing procedures. Its precise lidar-based measurement technology helps in detecting wind shear and turbulence, thereby enhancing flight safety. Powered by 24V ±5% DC and compatible with 100~230V AC power supplies, the device offers flexible installation options in various airport settings.
Furthermore, the MOLAS B300 is suitable for industrial applications such as pollution dispersion studies, construction site monitoring, and offshore platform wind analysis. Its ability to deliver continuous, real-time wind data with high reliability makes it a preferred choice for environmental monitoring and safety management in these sectors.
With a minimum order quantity of just one set, the MOLAS B300 is accessible for both large-scale projects and smaller research initiatives. The product's combination of advanced ground-based wind lidar technology, durable design, and user-friendly features positions it as a leading solution for diverse wind measurement needs across multiple industries.
